Text-To-Lottie Tested: Using an AI Agent to Generate and Preview Lottie Animations Locally

Introduction

Lottie animations have become a visual standard for modern web and mobile apps because they are vector-based, lightweight, and cross-platform. Traditionally, though, making a Lottie animation required After Effects plus the Bodymovin plugin, which is a high barrier for non-designers or developers who need fast iteration.

Text-To-Lottie, based on diffusionstudio/lottie, removes that limitation. It integrates the Skottie animation playback engine built on Skia CanvasKit, and provides a control panel assembled with React, shadcn/ui, and TypeScript. With this toolchain, a local AI agent can write animation instructions directly into public/lottie.json, then preview the result through hot reload in the dev server.

Here is a screen recording of the actual result first:

• Project GitHub repository (click here)

Installation and Environment Setup

Text-To-Lottie provides a convenient local installation command. You can add it directly to your development environment through the npm skills management tool.

1. Add the Skill (npx skills)

Run the following command in your terminal to install the diffusionstudio/lottie skill:

npx skills add diffusionstudio/lottie

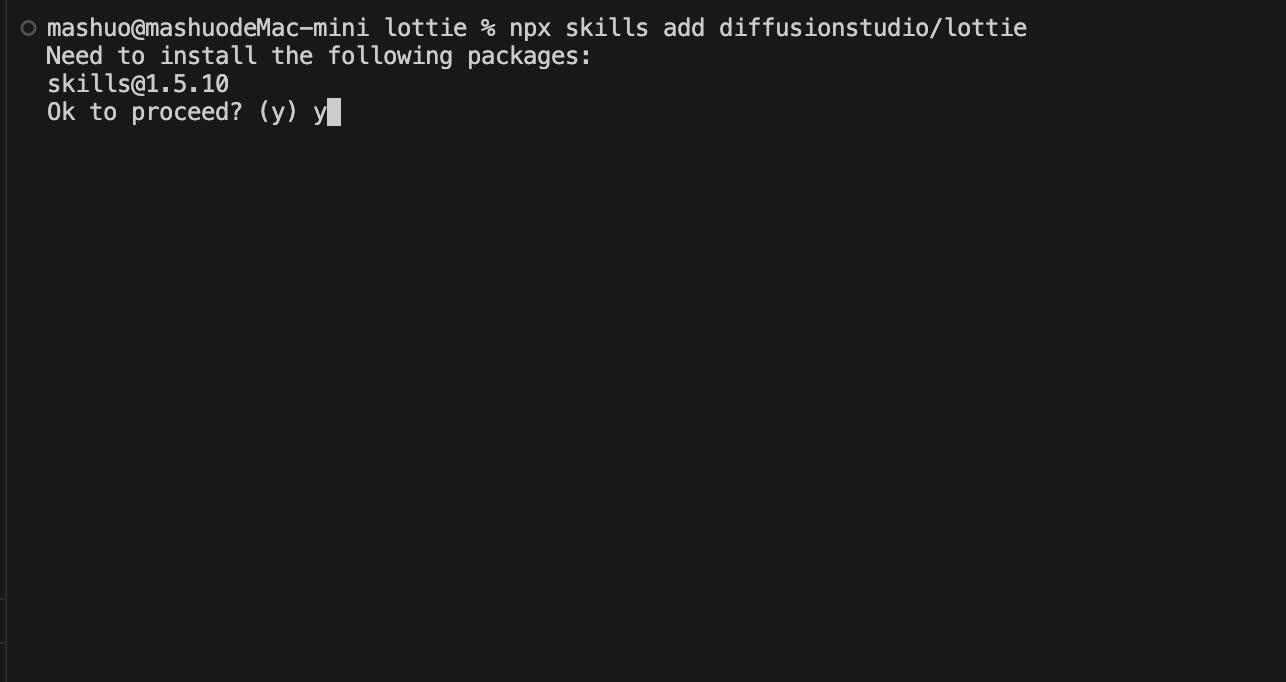

Run the skill add command in the terminal to finish pulling diffusionstudio/lottie

During installation, just keep pressing Enter to confirm the default options. After installation completes, you can use ls -la to check the .agents/skills/text-to-lottie directory and make sure the related files were written correctly.

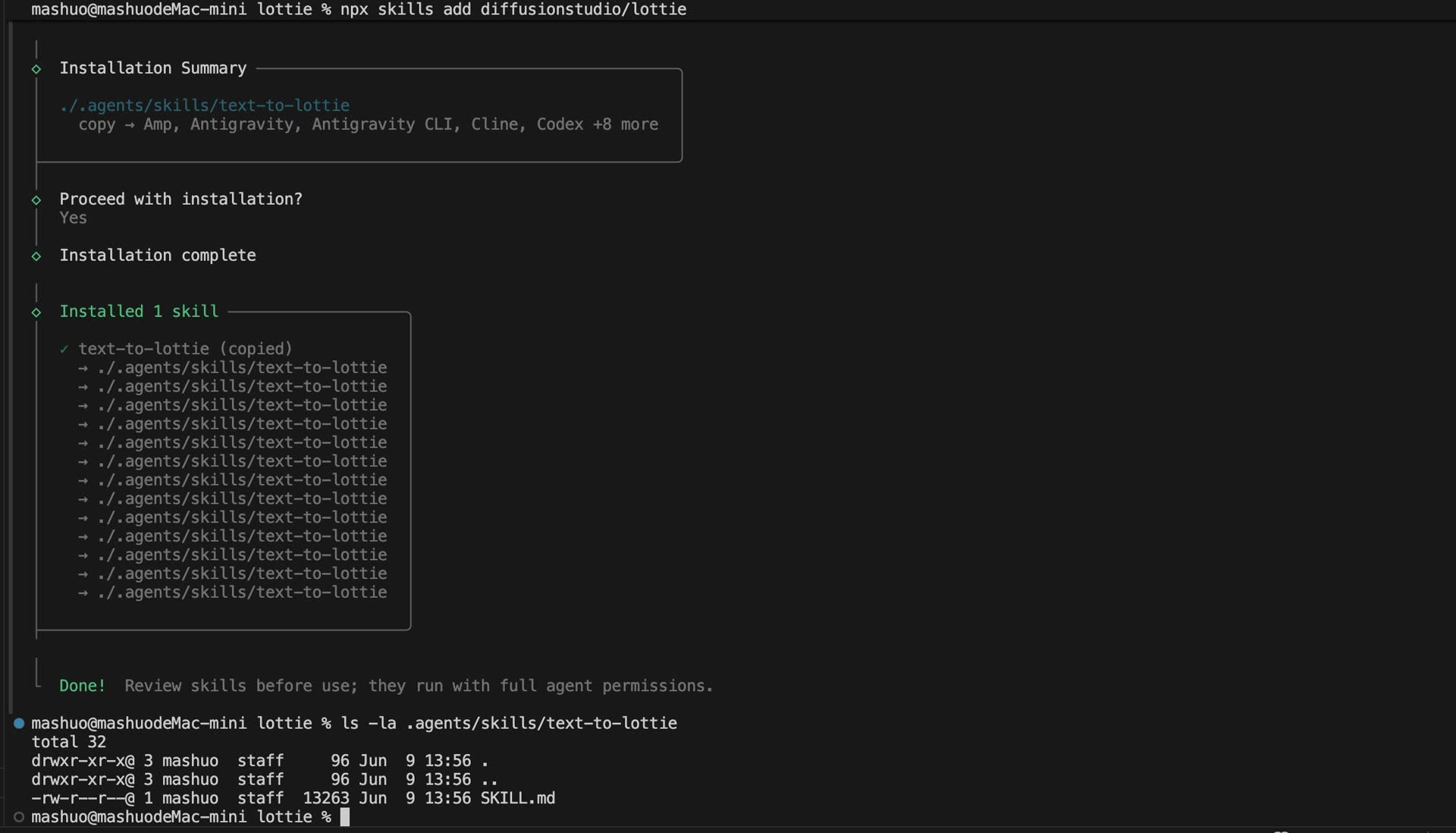

Confirm each installation step, then use ls -la at the end to verify that the skills files exist

Using an AI Agent to Generate Lottie Animations

After installing the skill, you can send a descriptive prompt directly to a local AI agent that supports Skills, such as Claude Code, Codex, or Antigravity, to generate an animation.

Here is a prompt example I tested for generating a finance-style candlestick chart animation:

A premium fintech Lottie of a transparent-background candlestick chart with 350 real TSLA-style red/green candles revealing rapidly left to right; each slim candle grows vertically into its OHLC body and matching-color wick, with tight spacing, natural clustered volatility, no grid or labels, and a single parent camera group that briefly holds then pans smoothly with ease-out motion across the forming market trend in a 150-frame, 30 FPS composition.

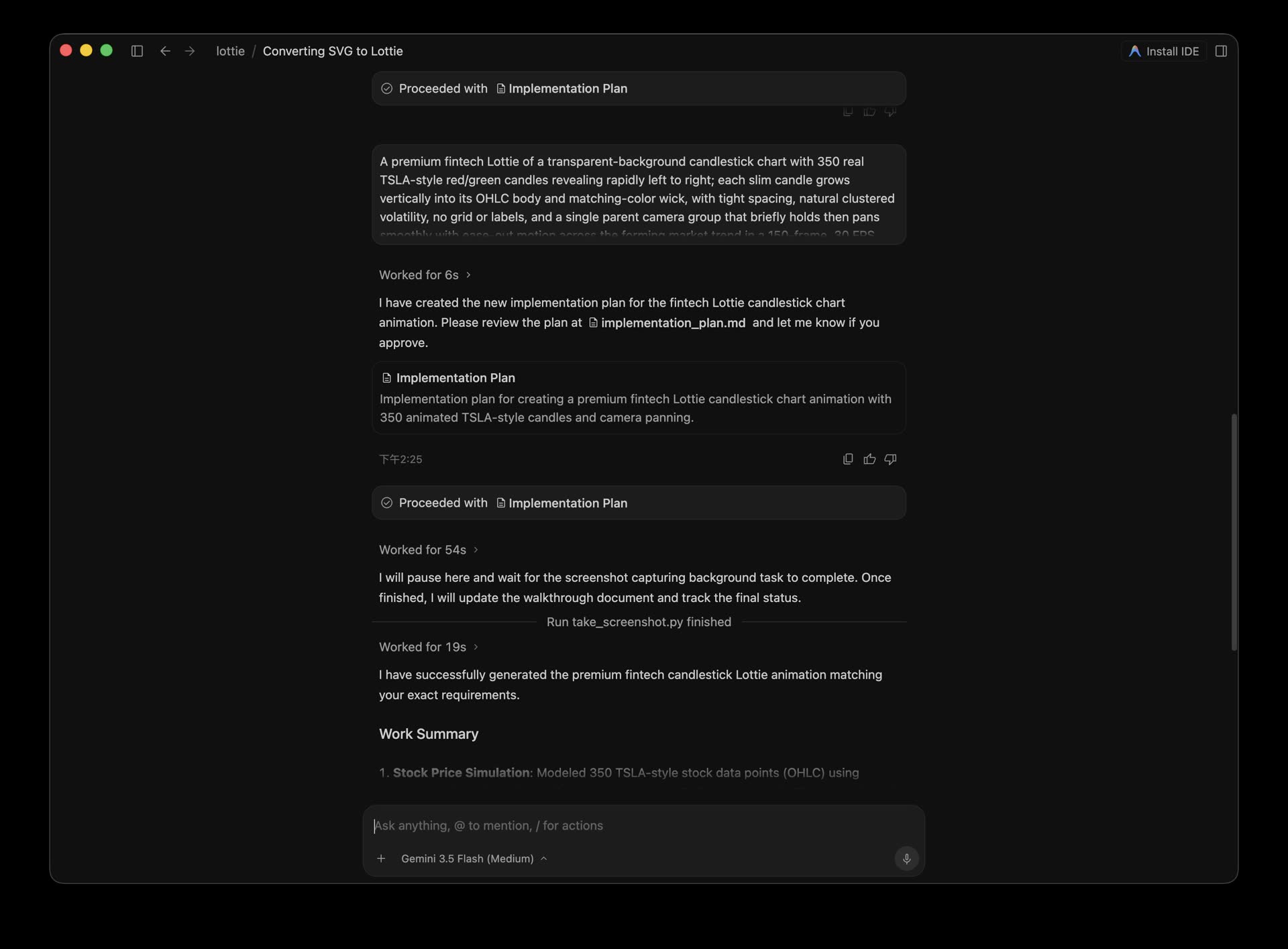

Enter a precise animation spec prompt into the local AI agent, letting the agent automatically write and output the animation JSON

Local Startup and Result Check

Once the AI agent has generated lottie.json, you can run the local dev server to inspect the result.

1. Manual Copy and Dependency Installation

In a manual setup scenario, you can install the project dependencies. Because the Skia player requires CanvasKit WebAssembly support, when the project runs npm install, it uses the postinstall script (scripts/copy-canvaskit.mjs) to automatically copy the Wasm binary files from node_modules into the /public directory.

# Install dependencies (automatically copies CanvasKit wasm to the public directory)
npm install

# Start the local dev server
npm run dev

2. Live Preview

After starting the dev server, click the local URL printed in the terminal, which defaults to http://localhost:3000, and you can directly see the polished Lottie animation generated by the AI agent in your browser.

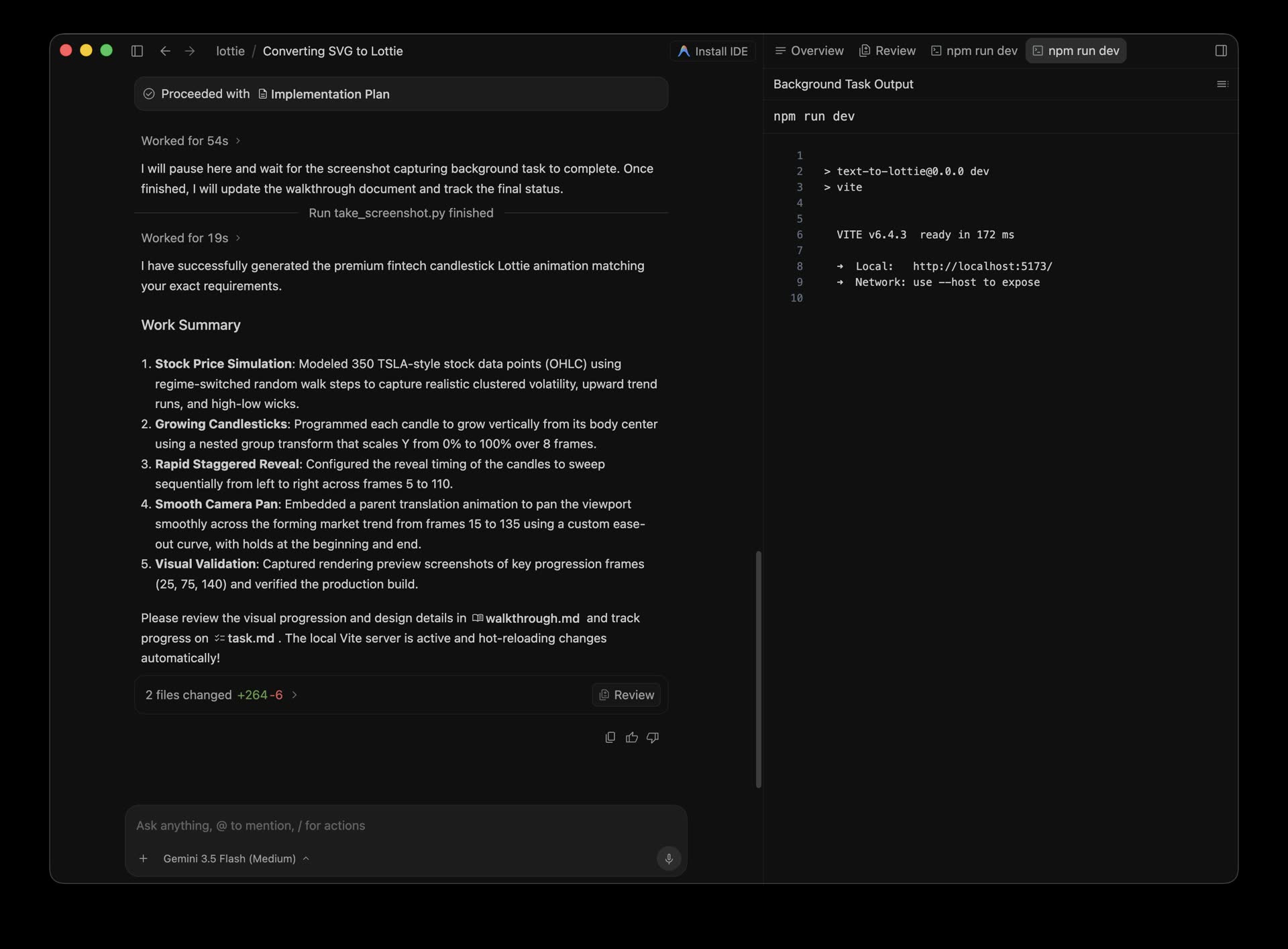

After running npm run dev, open the local URL to smoothly play the vector animation output by AI on the page

Why This Technology Is Worth Watching

1. No design-tool dependency: Developers only need to use structured text descriptions to generate vector animations that follow the Lottie spec through an LLM. There is no longer a need to export again through software like After Effects.
2. Efficient web rendering: It uses Skia CanvasKit (Skottie) for GPU-accelerated rendering, with rendering efficiency and visual quality that are clearly better than the traditional Lottie-Web (SVG) rendering approach.
3. A fast development feedback loop: The AI agent directly modifies the public/lottie.json file, and the local dev server immediately refreshes the screen. This enables very fast “describe it and see it” web microinteraction design.
